Enduro Helmet Kit LUMONITE® Navigator (v.2)

Lumonite Navigator MX is a high power helmet lamp kit specially designed for motorsports. It provides constant 3500+ lumen power without power drop in a compact size and light weight. This totally new version of the popular Navigator beats the previous models in every way - it is brighter - it throws longer - it runs longer - it is more beautiful - it has the new Slimcore battery...

Better power - Better throw - Better runtime...

Free Shipping Whole Europe

- We are happy to ship international orders via DHL Express -

The Navigator MX kit includes a bracket for handlebar, a bracket for Gopro system and the most commonly used 360° sticker mount for helmet, which makes the attachment options almost unlimited! Lumonite Navigator MX is a perfect choice for enduro, motocross, snowcross and other motorsports.

Lumonite Navigator’s combination beam illuminates the entire field of vision simultaneously. Its spot extends all the way to 300 meters, and its wide flood effortlessly illuminates the nearby terrain.

The purpose of the product was to create an excellent price-quality-ratio for anyone demanding absolutely great power of light. The objective was a lightweight and compact device, which will illuminate at a power of over 3500 real lumen uninterruptedly for a minimum of 2 hours.

Lumonite Slimcore 75 lithium ion battery

The lamp is powered by Slimcore 75 li-ion battery, which can be attached to – besides a pocket – a belt or bicycle bar with included multipurpose Slimholder. A perfectly fitting battery vest is found amongst the accessories. Slimcore 75 battery is equipped with a 5 step voltage indicator where the battery level can be checked at any time by pressing a separate button. The cells are covered with sturdy aluminum housing.

The Intelligent Power Management system does not let you down when the battery runs out, as the Navigator continues to illuminate at approximately 250 lumens for over an hour before the light goes out.

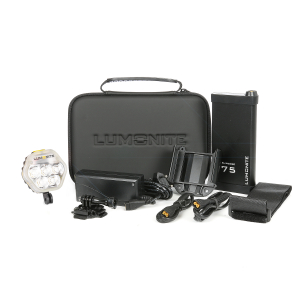

Contents of the package

Single - 3500 lm:

• 1 x Lumonite DX3500 lamp
• 1 x Lumonite DX3500 lamp protective cover
• 1 x Lumonite Slimcore 75 lithium ion battery
• 1 x Lumonite Slimholder battery mount & accessories
• 1 x Lumonite D-wall network charger (EU)
• 1 x Lumonite DXEC50 extension cable, 50 cm
• 1 x Lumonite DXEC100 extension cable, 100 cm
• 1 x Lumonite D-nut Gopro-bracket
• 1 x Lumonite Sticker 360 helmet mount
• 2 x Lumonite Cable holder 5 mm
• 1 x Lumonite DX soft case

Specifications

• Power output: 3864 lm (Labsphere FL2 -laboratory tested real lumens)
• Beam distance: 300 m
• Beam: Combination
• Battery: Lumonite Slimcore 75, 74,9Wh / 14,4V
• Charging time: 3 h
• Operating Modes: 4
• IP rating: Lamp IPX6, Battery IPX4
• Color temperature: 5500K
• Lamp dimensions: 68 x 65 x 39 mm
• Lamp weight: without cable 105 g, with cable 125 g
• Battery dimensions: 76 x 165 x 25 mm
• Battery weight: 472 g
• Warranty: Lamp 60 months, Charger 24 months, Battery 12 months

Performance (ANSI/FL1)

• Max: 3500+ lm / 300 m / 3:00 h
• High: 2200 lm / 230 m / 6:45 h
• Med: 1000 lm / 160 m / 13:00 h
• Low: 280 lm / 80 m / 2 days

Maximum power measured in the laboratory: 3864 lm

User manual

Lumonite Navigator Manual (FI/EN/SE/NO)

Engineered in Finland.

Remember Valostore's satisfied customer guarantee - order and test in real conditions of use. Free return if you are not satisfied!

3864 LUMEN– 300 METERS

COMPLETE BATTERY POWERED EXTRA LIGHT/HELMET LIGHT PACKAGE - 100% CUSTOMER SATISFACTION GUARANTEE! FREE RETURN / EXCHANGE

The LUMONITE® DX3500 luminaire together with the complete auxiliary light/helmet lamp package provides performance, quality and functionality never seen before at this price and size/weight ratio ! Just one DX3500 lamp fixture provides a whopping 3864 laboratory measured lumens, and if you combine two lamps, simple math shows that they deliver incredible 7728 lumens. Such an amount of light combined with precision machined reflector optics means that the terrain is illuminated in a rarely seen way. The GoPro-compatible light head provides a comprehensive light image with a powerful hotspot and a range of up to 300 meters. The light cone is wide enough to illuminate the entire field of vision at the same time, providing a very user-friendly experience. We recommend! ATTENTION! Helmet is not included in the product.

PS. If you are looking for an even more powerful lamp, we can recommend taking a look at the enduro package with the LUMONITE Leader Enduro package !

Based on our range, we have assembled all the necessary components into a complete package, which enables purposeful use for the extreme sportsman. The package includes the LUMONITEⓇ Slimcore 75 battery, which enables a luminous flux of over 3500 lumens for nearly 3 hours. The luminaire is designed for situations where maximum performance is required, with regard to luminous flux, burning time and light pattern.

FOR E.G. ENDURO, SCOOTER DRIVING, ATV! VERY LIGHTWEIGHT FORMAT!

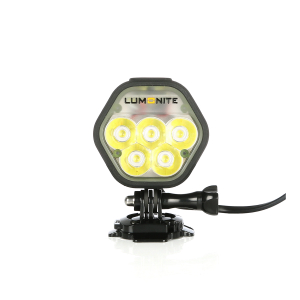

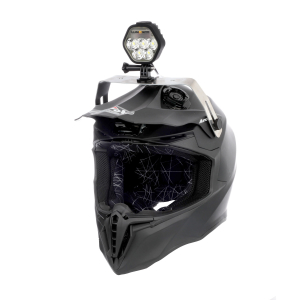

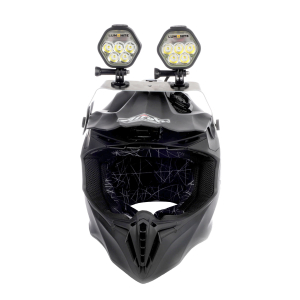

ATTENTION! The DX3500 fixture comes fitted with a GoPro mount that makes it compatible with all GoPro mounts. In addition, a helmet bow incl. GoPro mounts that screw into the frame for solid and stable mounting on top of the helmet. A GoPro mount that can be attached directly to the helmet is also included. All mounts sit really firmly and are adjustable both vertically and laterally.

On the left in the pictures above is the big brother Lumonite Leader.

The lamp has several different power levels that you can switch between with a simple press of the switch at the back. The lamp saves the last used power mode when the power is interrupted and starts with this when it is reconnected. It is therefore perfectly possible to mount a separate circuit breaker before the transformer.

If you also want to be able to use the lamp as a headlamp , we recommend checking out the Lumonite Navigator package.

CAN BE ORDERED IN FIVE DIFFERENT PACKAGES:

1 x Lamp & battery + GoPro mount (3864 lumens):

• 1 Lumonite DX3500 lamp (incl. silicone protective ring)
• 1 Lumonite Slimcore 75 , li-ion battery
• 1 Lumonite DXC charger (Charging time approx. 4 hours)
• 1 pc Lumonite DXEC Extension cord (50 cm)
• 1 pc Lumonite DXEC Extension cord (100 cm)
• 1 Lumonite helmet mount with adhesive, 360°, GoPro compatible
• 2 cable mounts for helmet mounting 5 mm
• 1 pc Storage bag

2 x Lamp & battery + GoPro mount ( 7728 lumens):

• 2 Lumonite DX3500 lamps (incl. silicone protective ring)
• 2 pcs Lumonite Slimcore 75 , li-ion battery
• 2 Lumonite DXC chargers (Charging time approx. 4 hours)
• 2 pcs Lumonite DXEC Extension cord (50 cm)
• 2 pcs Lumonite DXEC Extension cord (100 cm)
• 2 pcs Lumonite helmet mount with adhesive, 360°, GoPro compatible
• 4 pcs . Cable mount for helmet mounting 5 mm
• 2 pcs Storage bag

1 x Lamp + 12V transformer (3864 lumens):

• 1 Lumonite DX3500 lamp (incl. silicone protective ring)
• 1 pc 12V-Transformer for 1 pc lamp
• 1 Lumonite helmet mount with adhesive, 360°, GoPro compatible
• 1 pc Purelux Rocker Switch on/off switch (connects to the transformer)
• 1 pc Lumonite DXEC Extension cord (50 cm)
• 1 pc Lumonite DXEC Extension cord (100 cm)
• 1 Lumonite helmet mount with adhesive, 360°, GoPro compatible
• 2 cable mounts for helmet mounting 5 mm
• 1 pc Storage bag

1 x Lamp & battery + helmet mount (3864 lumens):

• 1 Lumonite DX3500 lamp (incl. silicone protective ring)
• 1 Lumonite Slimcore 75 , li-ion battery
• 1 Lumonite DXC charger (Charging time approx. 4 hours)
• 1 helmet mount "Båge" - Including 2 GoPro mounts and 3 screws for mounting on a helmet
• 1 pc Lumonite DXEC Extension cord (50 cm)
• 1 pc Lumonite DXEC Extension cord (100 cm)

• 1 Lumonite helmet mount with adhesive, 360°, GoPro compatible
• 2 cable mounts for helmet mounting 5 mm
• 1 pc Storage bag

2 x Lamp & battery + helmet mount (7728 lumens):

• 2 Lumonite DX3500 lamps (incl. silicone protective ring)
• 2 Lumonite Slimcore 75 , li-ion batteries
• 2 Lumonite DXC chargers (Charging time approx. 4 hours)
• 1 helmet mount "Båge" - Including 2 GoPro mounts and 3 screws for mounting on a helmet
• 2 pcs Lumonite DXEC Extension cord (50 cm)
• 2 pcs Lumonite DXEC Extension cord (100 cm)

• 2 pcs Lumonite helmet mount with adhesive, 360°, GoPro compatible
• 4 pcs . Cable mount for helmet mounting 5 mm
• 2 pcs Storage bag

Lumonite Navigator has been developed based on feedback and requests from users, and designed to meet even the highest demands you as a user can place on a lamp. The Lumonite DX3500 lamp fixture is equipped with a high-quality lens that provides a combination light cone that illuminates the entire field of vision at once. The central spot illuminates up to 300 meters and the wide, all-encompassing diffused light illuminates the surrounding terrain in all directions. The light cone is wide enough to illuminate the entire field of vision at once. which provides a very user-friendly experience.

Lumonite Slimcore battery

The included Lumonite Slimcore lithium-ion battery provides an operating time between 3 and 48 hours depending on the power mode. It can be attached with the innovative Slimholder attachment in e.g. the belt or the bicycle frame, and the sturdy aluminum case protects from impacts. There is a five-scale indicator in the battery which, with the push of a button, reveals how much of the battery's charge remains. The battery also contains a smart function that does not turn off the light completely when the battery runs out, but gradually lowers the brightness - so you never have to get lost in the dark.

Valostore's satisfied customer guarantee - order and test in real conditions of use. Free return if you are not satisfied!

Developed for maximum continuous power

The Lumonite DX3500 light fixture is designed to be able to deliver continuous power, therefore maximum cooling capacity is required. This is achieved by large parts of the lamp being covered by efficient cooling fins. The fixture is made from a single piece of aluminum to ensure maximum heat dissipation. It is also equipped with advanced heat-regulating electronics, which actively monitors the temperature in the lamp. This is to be able to keep the light intensity as high as possible at all times under all conditions.

Technical specification

• Make and model: Lumonite DX3500
• Manufacturer's reported light output: 3500 lm
• Valostore's measured light performance: 3864 lm
• Valostore's measured color temperature: 6494K
• Measured range: 300 m
• Cone of Light: Combination
• Battery: Lumonite Slimcore 75, 74.9Wh / 14.4V / 5200mAh
• Charging time: 2.5 h
• Power modes: 4
• Protection class of the lamp fixture: IPX6
• Battery protection class: IPX4
• Outer dimensions: Lamp fixture 68 x 65 x 39 mm, battery 79 x 165 x 25 mm
• Weight: Lamp fixture 125 g, battery 472 g
• Warranty: Lamp fixture 60 months, charger 24 months, battery 12 months

Power Modes (ANSI/FL1)

• Max: 3500+ lm* / 300 m / 3:00 h (*Laboratory measured maximum performance 3864 lm)
• High: 2200 lm / 230 m / 6:45 h
• With: 1000 lm / 160 m / 13:00 h
• Low: 280 lm / 80 m / 48:00 h

Doesn't leave you in the lurch when the battery runs out

One of the features of the Lumonite DX3500 light fixture is that it does not allow you to run out of battery at the highest power setting, even if it were technically possible. When the battery starts to run down, the highest power setting would cause it to run out completely in just a few minutes, but with a lower power setting, you can get much longer burn time out of the lamp. When the "official" burning time is over, the lamp also continues to shine with a luminous flux of approx. 250 lumens for over an hour. This lamp will not leave you stranded when the battery runs out!

Quick guide

The Lumonite DX series is easy to use – the lamp is switched on using the switch on the top of the lamp fixture. After that, a simple press of the power switch makes you switch between the different power modes: low – medium – high. The maximum mode is activated with a simple double click. Double-click again to return to the previous effect mode.

Note! The transformer package is delivered with an ON/OFF switch . When connected to a lamp, the transformer consumes some current even when the lamp is off, so during long storage it can drain the vehicle's battery if the transformer is connected directly to the battery. Therefore, you should install a circuit breaker in between. The best solution is, of course, to connect the transformer directly to e.g. the vehicle's fuse box or other place where the current is interrupted when the vehicle is switched off and the battery is not discharged.
