The orienteer's choice · 4,195 lm
Navigator2
The lamp that brought a 14-time world champion to our door, in its second generation: 4,195 measured lumens, 300 metres of throw and a beam wider than 180° — from a 126-gram head.
4.6 · 513 reviewsQuick start
- Charge the Slimcore full
- Press: on, press: next mode
- Double-click: max
- Hold: off
Opens the Navigator2 page at valostore.com — the market chosen in the top bar.
- 4,195 lm
- measured in the lab
- 300 m
- beam
- 126 g
- lamp head
- >180°
- width of the beam
- 48 h
- in the 280 lm mode
- 5 years
- on the lamp head
How to use
Everything is one button.
No menus, no strobe, no app. Here is the whole interface — it takes a minute to learn and you never think about it again.
User manual (PDF)- 01
Charge the battery first
The Slimcore ships at about 50 %. Connect the charger: red while charging, green when full. Press the button on the battery to see the charge in five steps.
- 02
Assemble
Fix the lamp head to the headband with the supplied screw and tighten well. Run the cable through the headband loops and connect it to the battery — use the extension cable if the battery rides on your back.
- 03
One press: on, then cycle
Press the switch to start. Every press steps through the four power modes.
- 04
Double-click for maximum
Double-click for full power at any time; double-click again to return to the previous mode.
- 05
Hold to switch off
A long press switches the lamp off. Next time it starts in the mode you used last.
- 06
Carry the battery your way
Belt, bike frame or pack with the Slimholder — or in a Slimvest, where the weight disappears and the cells stay warm.
- 07
Unplug after use
Pull the connector, not the cable, and keep the connectors clean and dry when disconnected.
- 08
GoPro-style fitting
The head and the headband use the universal GoPro-style mount, so any helmet, handlebar or chest mount on the market will carry it.
Battery care
Never store it empty
An empty lithium battery ages fast. If the lamp rests over the summer, charge it full first — then it lasts for years and hundreds of cycles.
Not in the cold
Charge indoors at room temperature. The battery's protection circuit will refuse to charge in frost, to protect the cells.
A warm head is normal
The lamp cools through its body, so it gets hot at full power. Standing still or in warm weather, step down a mode — the overheat protection will do it for you otherwise.
It won't leave you dark
When the battery runs low, the lamp dims a step instead of switching off, so you always get home.
Owner tips
- Second-highest mode
High (2,200 lm) is what most night riders and orienteers use — nearly seven hours and still 230 metres.
- Vest
A Slimvest V2 takes the 472-gram battery off your belt and keeps the cells warm.
- Two heads, one battery
The D-Splitter cable runs a second DX head from the same Slimcore — helmet and handlebar at once.
- Fixed install
The D-Moto transformer powers the head from a 12 V system on a snowmobile, ATV or enduro bike.
Measured, not promised
Honest lumens.
Every Lumonite is measured in Valostore's light laboratory in Oulu, and we publish the number we measured next to the number on the box. The box number is the conservative one.
Measured output is 20 % above the ANSI/FL1 rating. Colour temperature 5000 K, beam to 300 m.
Modes · output, runtime and beam (ANSI/FL1)
Runtimes are to ANSI/FL1 with a full battery at room temperature. Cold and age shorten them. Full runtime curves from the lab are available to professional buyers on request.

Why Navigator2
Reading terrain at speed is what it was built for.
In 2015 Thierry Gueorgiou tested almost every orienteering lamp on the market and picked the Navigator. Navigator2 keeps the idea — a beam that opens wider than 180° to light the whole field of view, with a 300-metre centre for the next control — and lifts the measured output to 4,195 lumens.

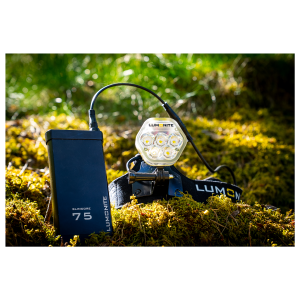

The 126-gram head sits on the Ergo V2 headband; the Slimcore 75 battery goes on a belt or in a vest, with intelligent management that steps the power down before it runs out. Three hours on full, 13 at a thousand lumens.
Head and headband are GoPro-compatible, so the same light becomes a bike light, an enduro helmet light or a snowmobile spot. For the ones who ride, there is a 12 V transformer for a fixed install.
In the box · standard kit
- Navigator2 lamp head (DX3500) with protective cover
- Slimcore 75 battery, 74.9 Wh / 14.4 V, with Slimholder bracket
- Mains charger
- DX extension cable, 50 cm
- Ergo V2 headband
- Storage bag
- Manual (FI, EN, SE, NO)
Works with Navigator2
26 accessories that fit. Nothing that doesn't.
Everything below shares the GoPro-style fitting and Slimcore battery, so it clicks straight on. The full catalogue, filtered by lamp, is on the brand page.
Batteries & power
Slimcore-C battery14.4 V · 50, 75 or 100 · doubles as a power bankAt Valostore
SlimholderUniversal battery attachmentAt Valostore
Slimvest V2Battery vest · weight off the headAt Valostore
DX extension cableSix lengthsAt Valostore
D-Splitter cableTwo lamp heads, one batteryAt Valostore
D-Moto transformerFixed 12 V install on an ATV or vehicleAt Valostore
Charging
Headbands
GoPro-compatible mounts
D-nut adapterGoPro fitting to DXAt Valostore
DX Helmet MountThe basic helmet fittingAt Valostore
J-MountTwo sizesAt Valostore
Extension armsReach and angleAt Valostore
SplitterTwo heads on one baseAt Valostore
Sticker 360Rotating adhesive baseAt Valostore
Flat adhesive mountStraightAt Valostore
Curved adhesive mountFor helmetsAt Valostore
Chin mountMotorcycle & enduro helmetsAt Valostore
Bike helmet mountVented helmets · two sizesAt Valostore
Dog harnessLight for the dogAt Valostore
Flexlink loopsTwo mounting loopsAt Valostore
Releasy™ & carrying
Technical details
Specifications
Documents
Weights and dimensions are for the current version. Older versions of the Navigator2 may differ — the product code is on the lamp.
- Light output
- 3,500+ lm ANSI/FL1 · 4,195 lm measured maximum
- Beam
- Combination, 300 m, more than 180° wide
- Colour temperature
- 5,000 K
- Battery
- Slimcore 75 · 74.9 Wh · 14.4 V · 5,200 mAh · USB-C power bank
- Charging
- ≈ 2.5 h with the mains charger
- Modes
- 4
- Protection
- Lamp head IPX6 · battery IPX4
- Dimensions
- Head 68 × 65 × 39 mm · battery 79 × 165 × 25 mm
- Weight
- Head 126 g with D-nut · battery 472 g
- Mount
- GoPro-style fitting on head and headband
- Warranty
- Head 60 months · charger 24 · battery 12
- Product code
- HSKIT166
From people who own one
Owners on the Navigator2
“Does what it promises. I ride forest trails at night on my MTB on the second-highest mode, and the light is more than enough.”
“Excellent lamp for long distances over an hour. The battery is big and heavy; for 30-minute efforts consider a smaller battery.”
“Sat well on the head and the back. The beam is powerful and just wide enough for orienteering. The controls were found.”
“A very good lamp for orienteering. Finding controls on a September night was never down to the lamp.”
“Meets the requirements; the lamp with a pack for the battery is convenient for running. The highest brightness lasts a long time.”
“Very good light — I own two of them. Light and very pleasant to use.”
Verified-purchase reviews collected by Valostore after delivery. Names shortened; quotes translated to English, the originals are on the store pages.
